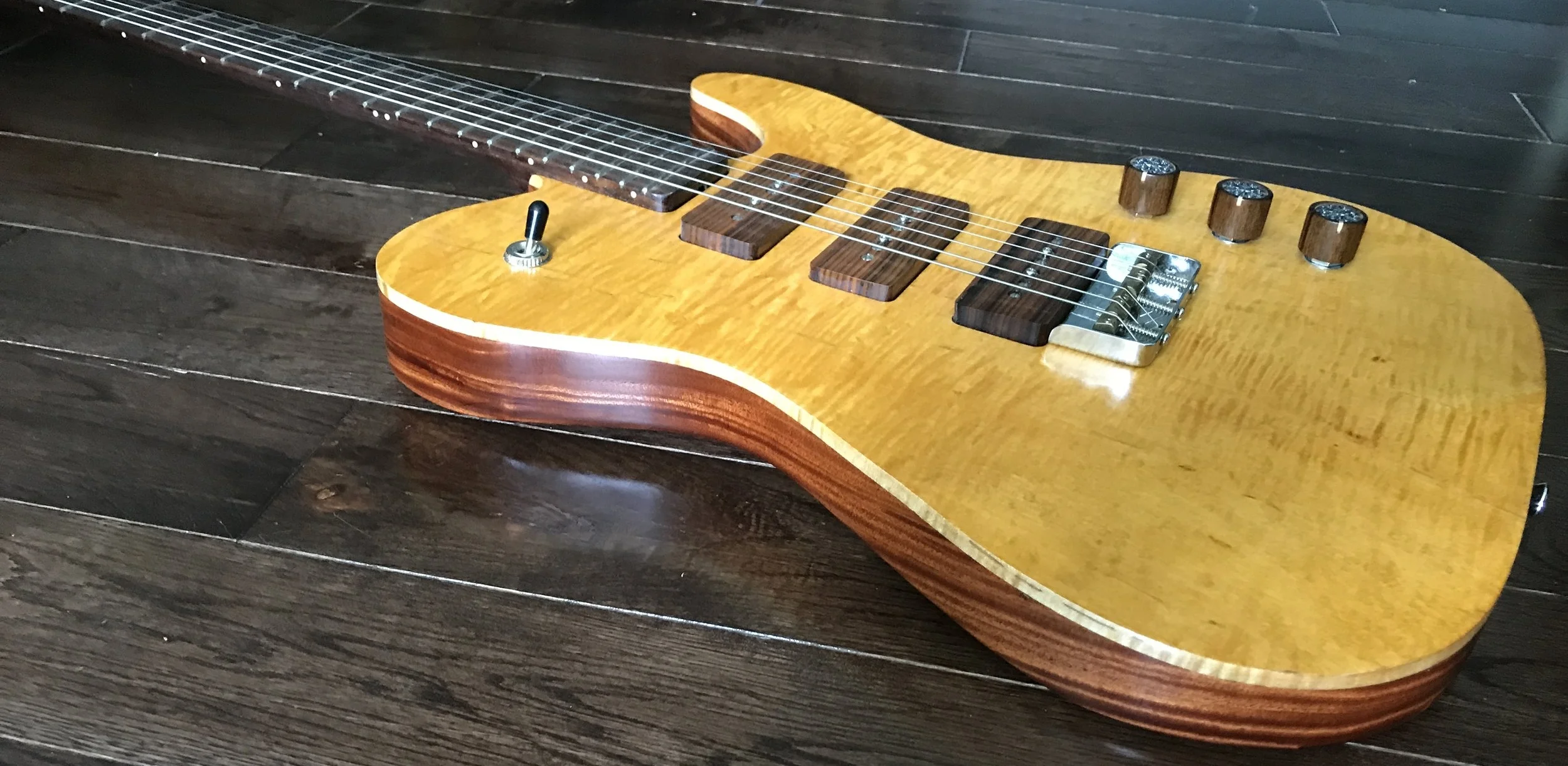

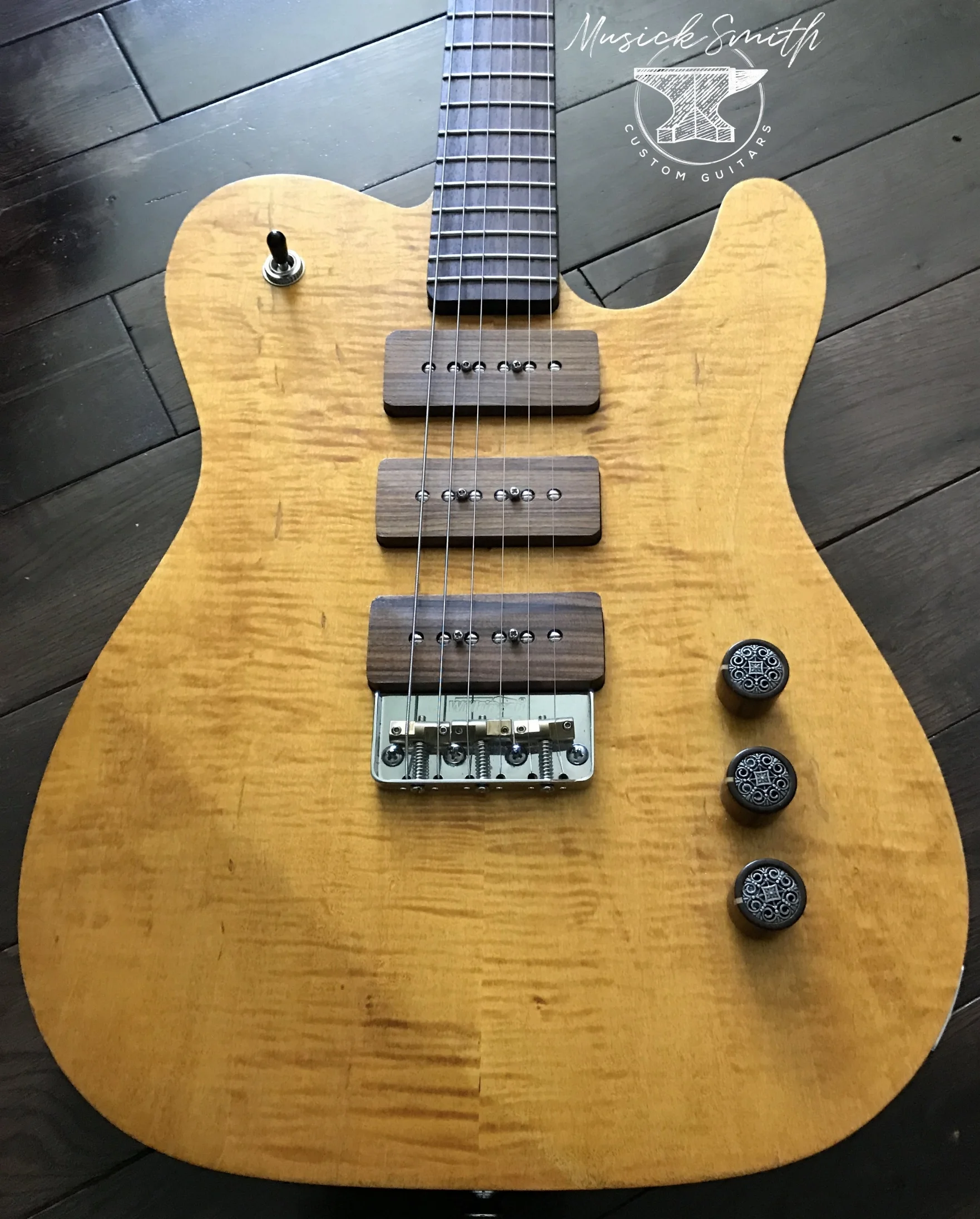

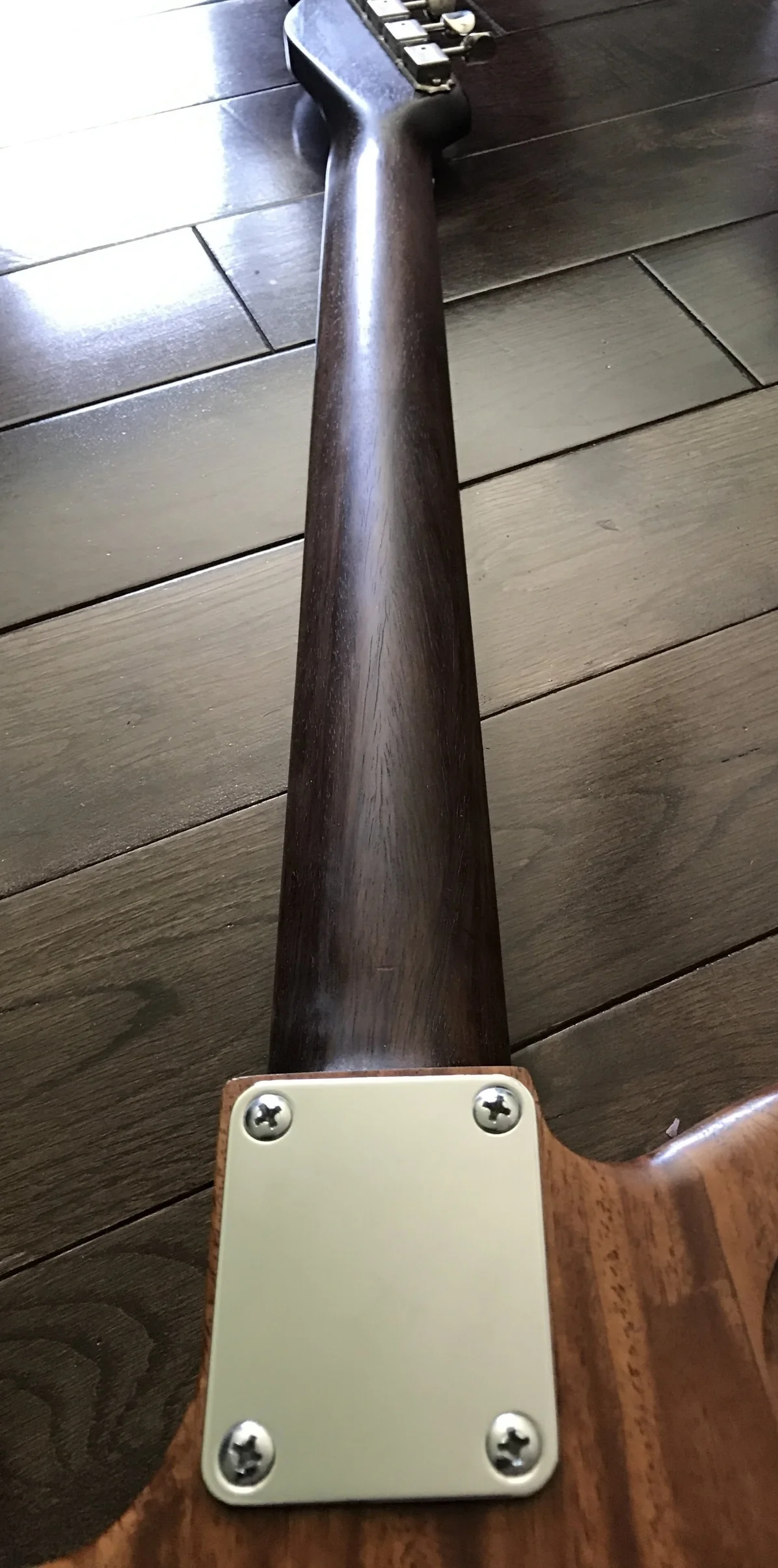

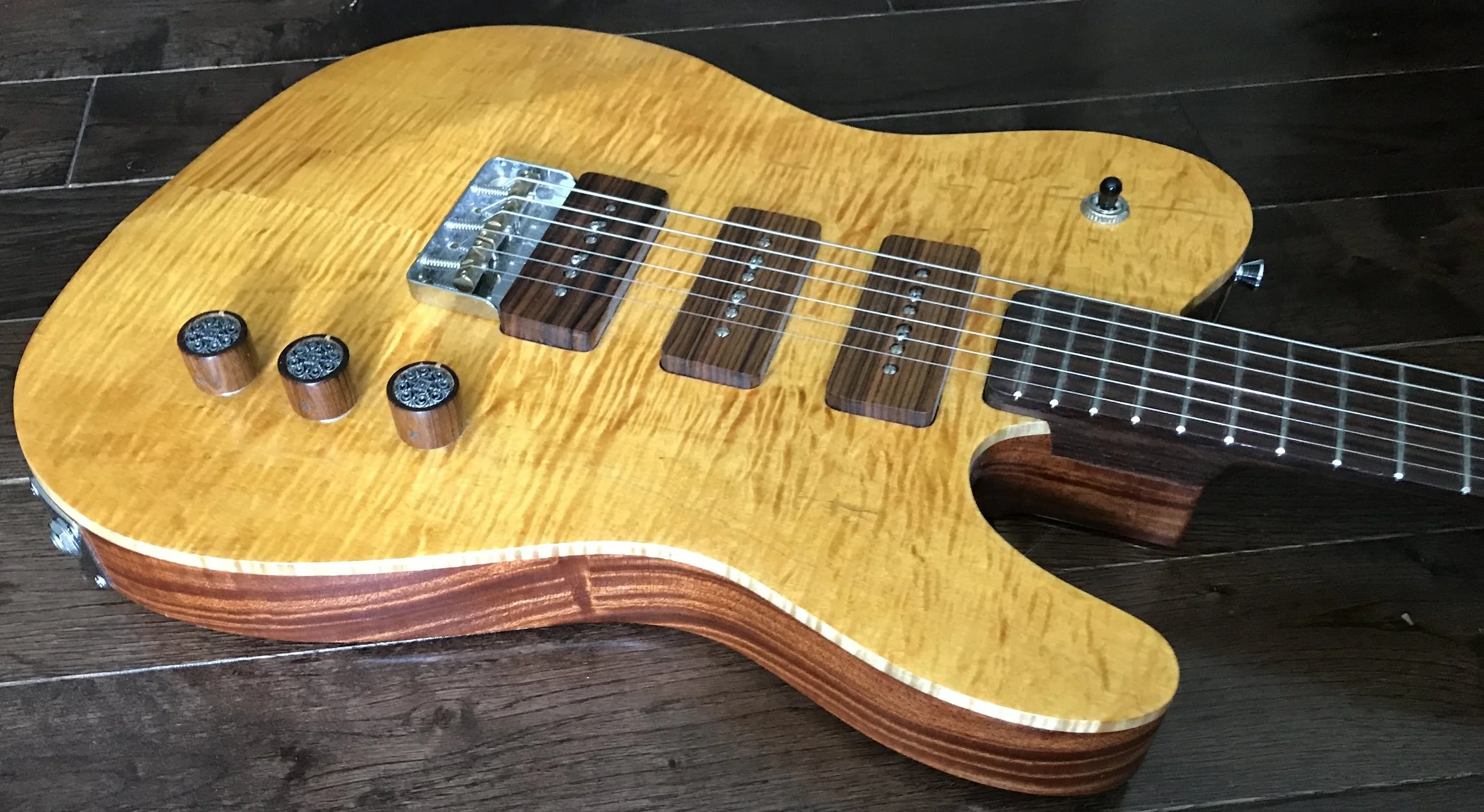

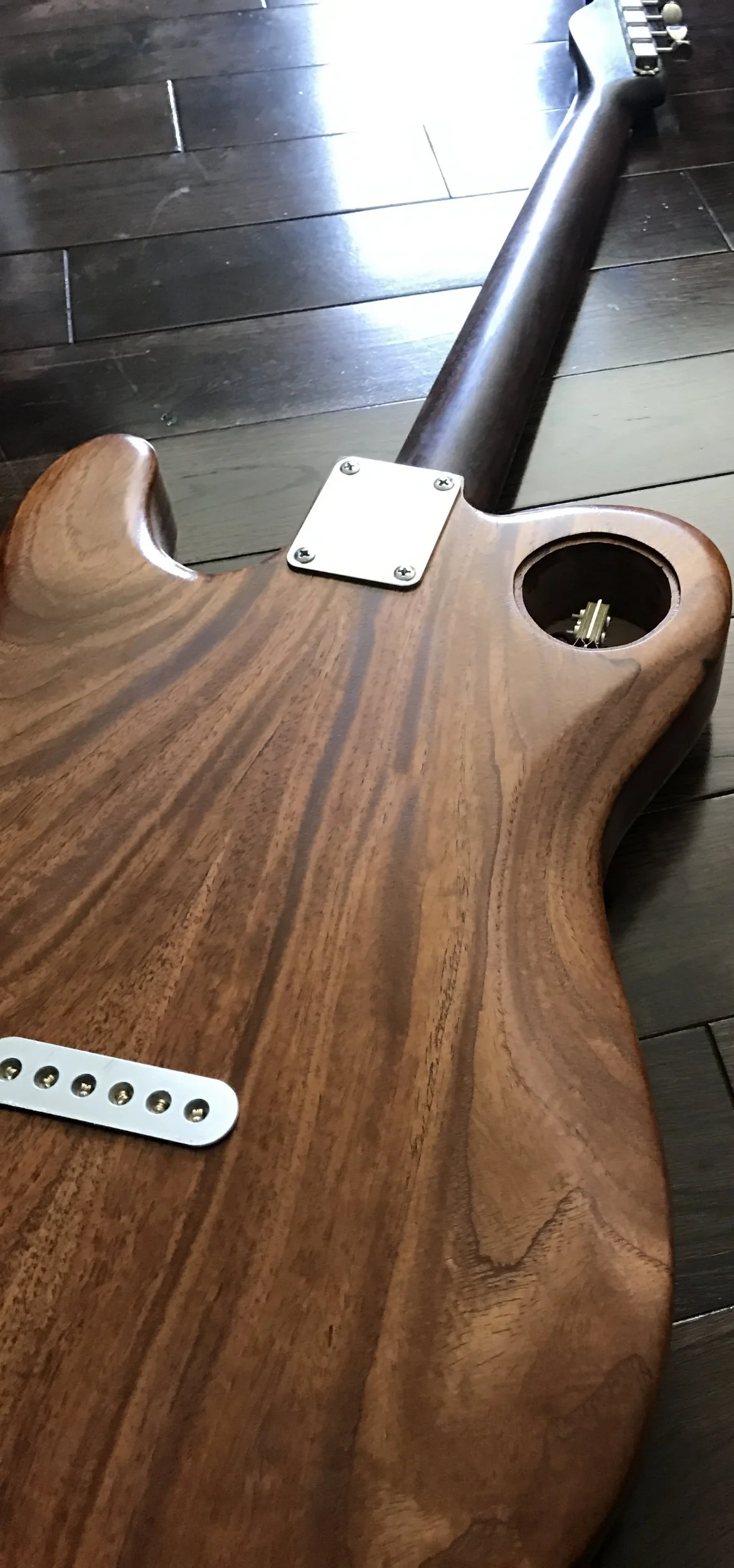

This guitar is an homage to one of our favorite innovators in guitar building (Leo F) and one of our favorite innovators in guitar playing (Jerry Garcia). We started with a design from the godfather of electric guitar innovation and then we poured in some twists from Garcia's early/mid 70's era guitars. We ended up with an incredibly versatile guitar that is just as happy playing a country tune as it is playing spaced out jazz-rock. 3 p90s, a 3-way switch, two volumes and a master tone control have been wired up to allow for 7 different pickup combinations and for endless variation when blending the pickups together using the volume knobs. A light tru-oil finish on the solid rosewood neck is both beautiful and incredibly easy to play. Never sticky. The rosewood pickup covers were made in our shop.
BODY STYLE: Classic T-Style
BODY WOOD: Figured Spanish Cedar and Flame Maple
BODY FINISH: Amber Glow Tru-oil
NECK WOOD: Rosewood
FINGERBOARD WOOD: Rosewood
SCALE LENGTH: 25.5"
RADIUS: 12"
Inlay: none
NUT WIDTH: 1 11/16"
FRETS: StewMac #0148
NECK FINISH: TRU-OIL
HEADSTOCK FINISH: TRU-OIL
TUNERS: Gotoh vintage style locking tuners
BRIDGE: Wilkinson chopped hard tail
Knobs: Custom Rosewood with pewter knobs from Archipelago Glass
PICKUP: 3 P-90s with MusickSmith Rosewood covers
CONTROLS: Bridge/Neck volume, Middle Volume, Master Tone, 3 way toggle
HARDWARE COLOR: Chrome
STRINGS: Mapes Blues

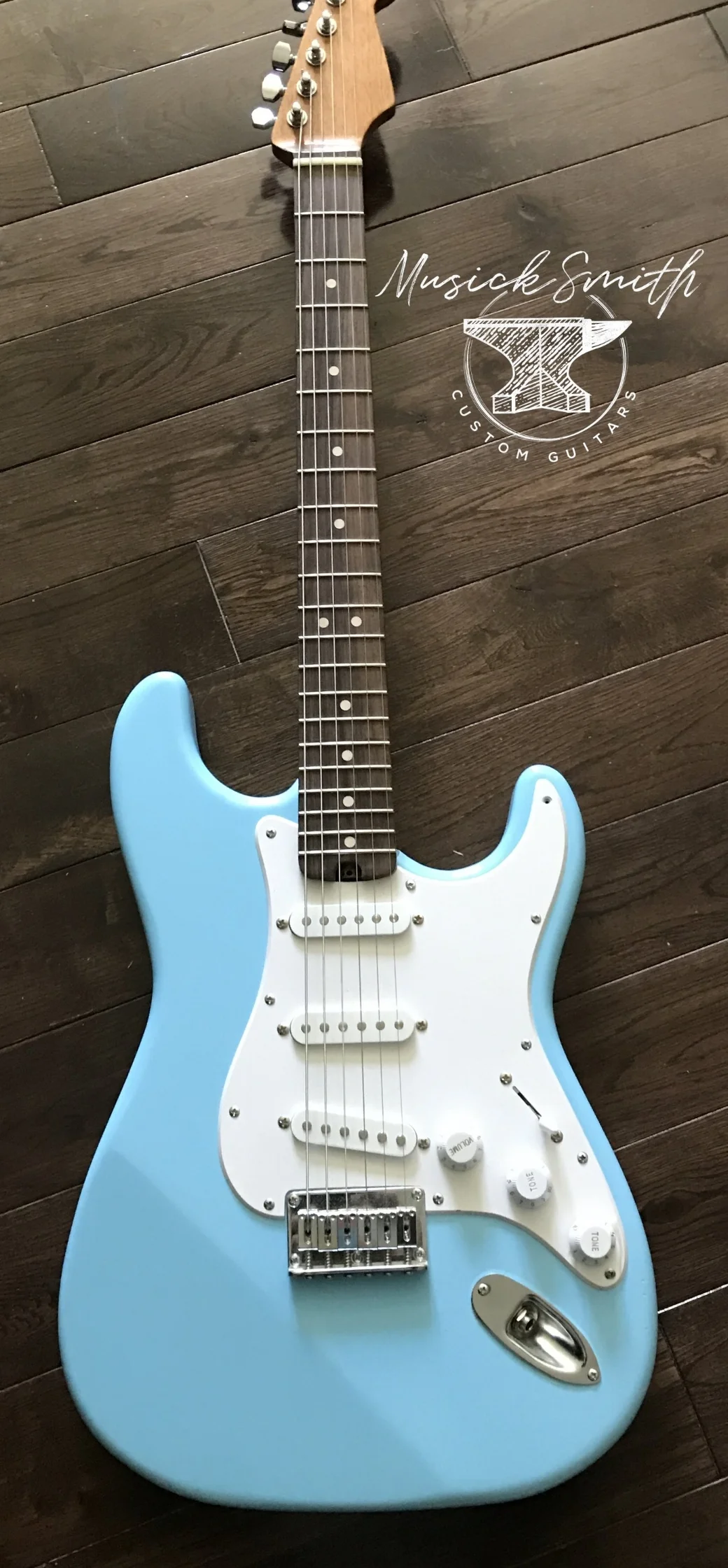

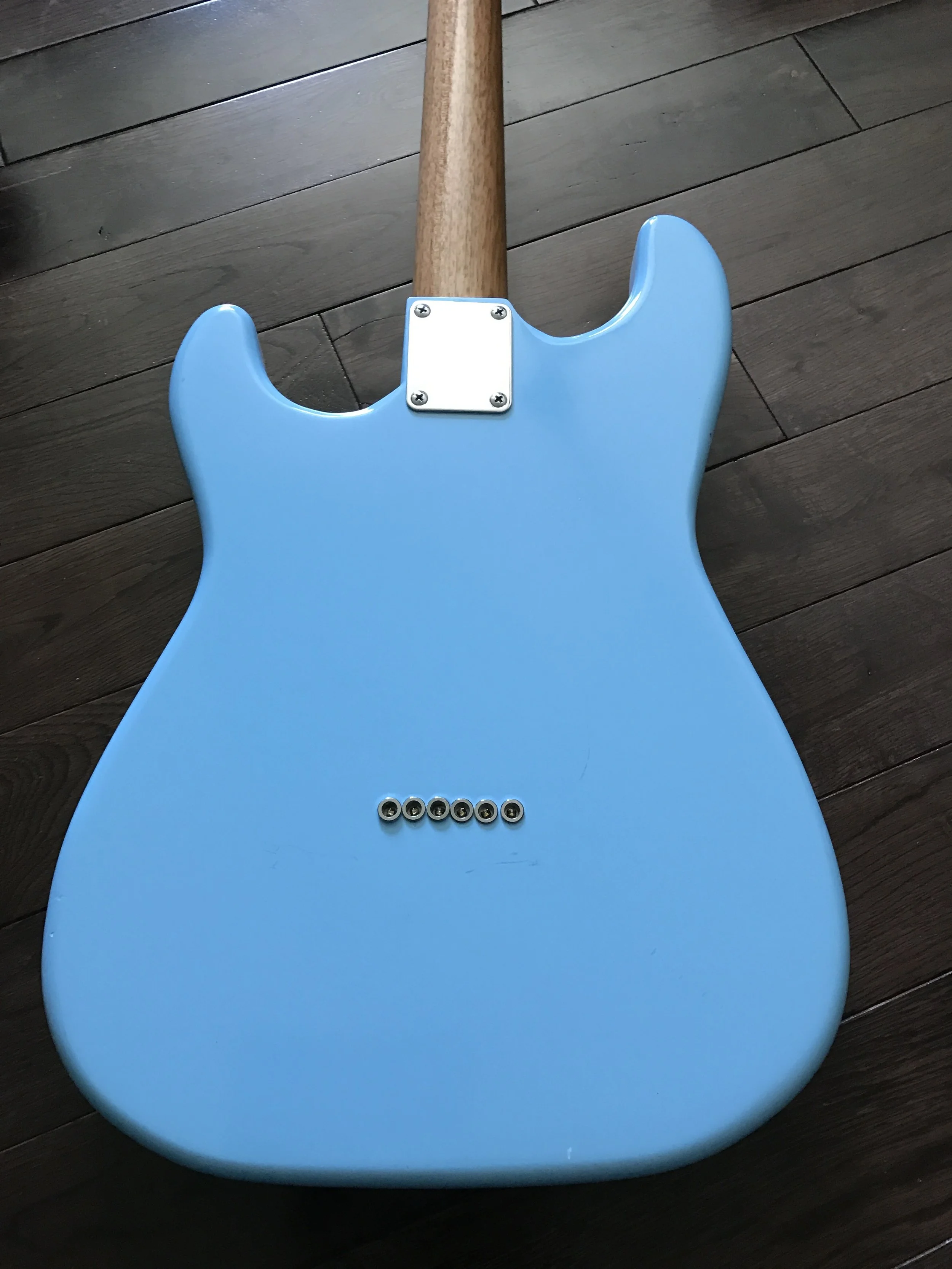

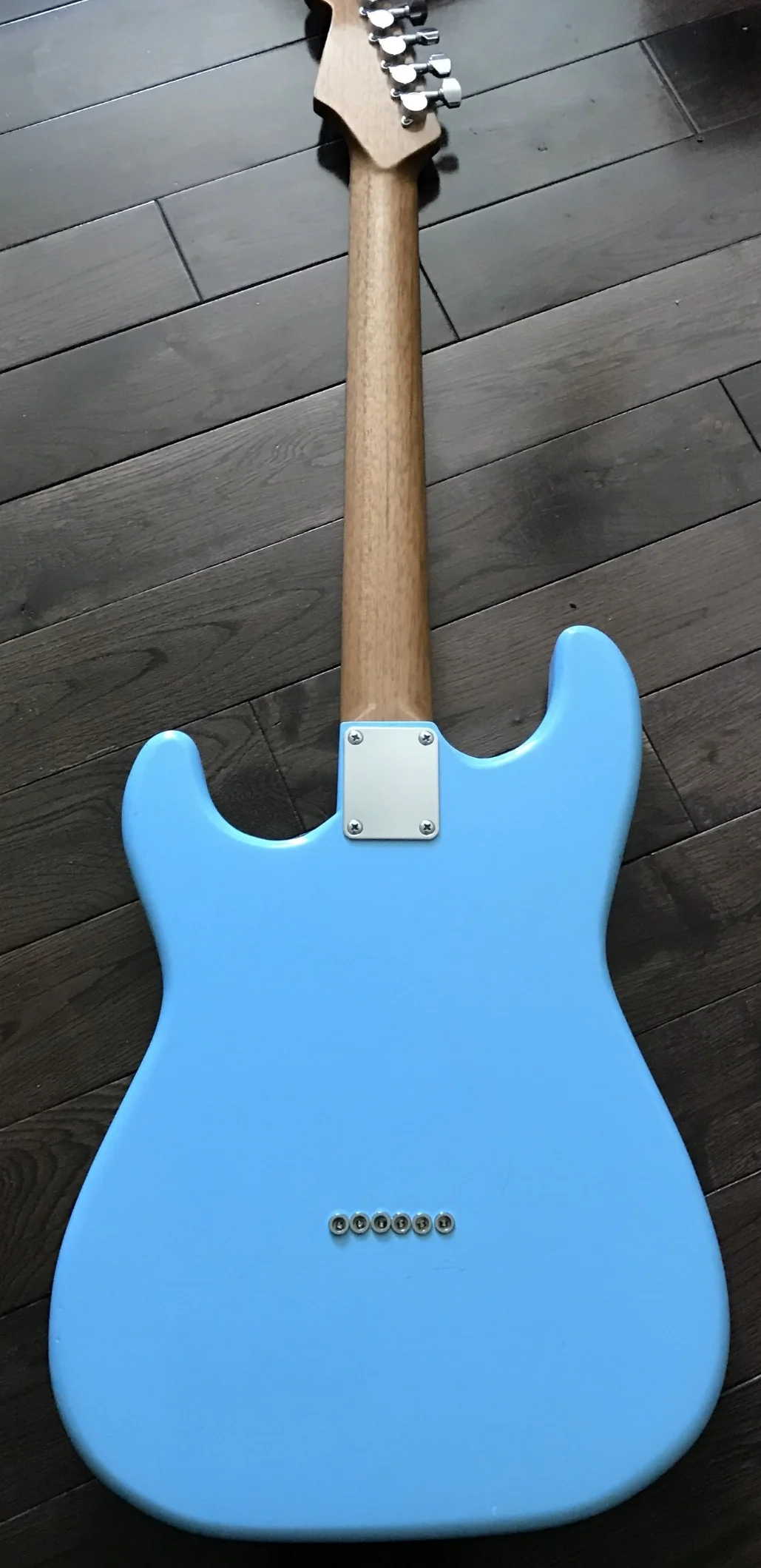

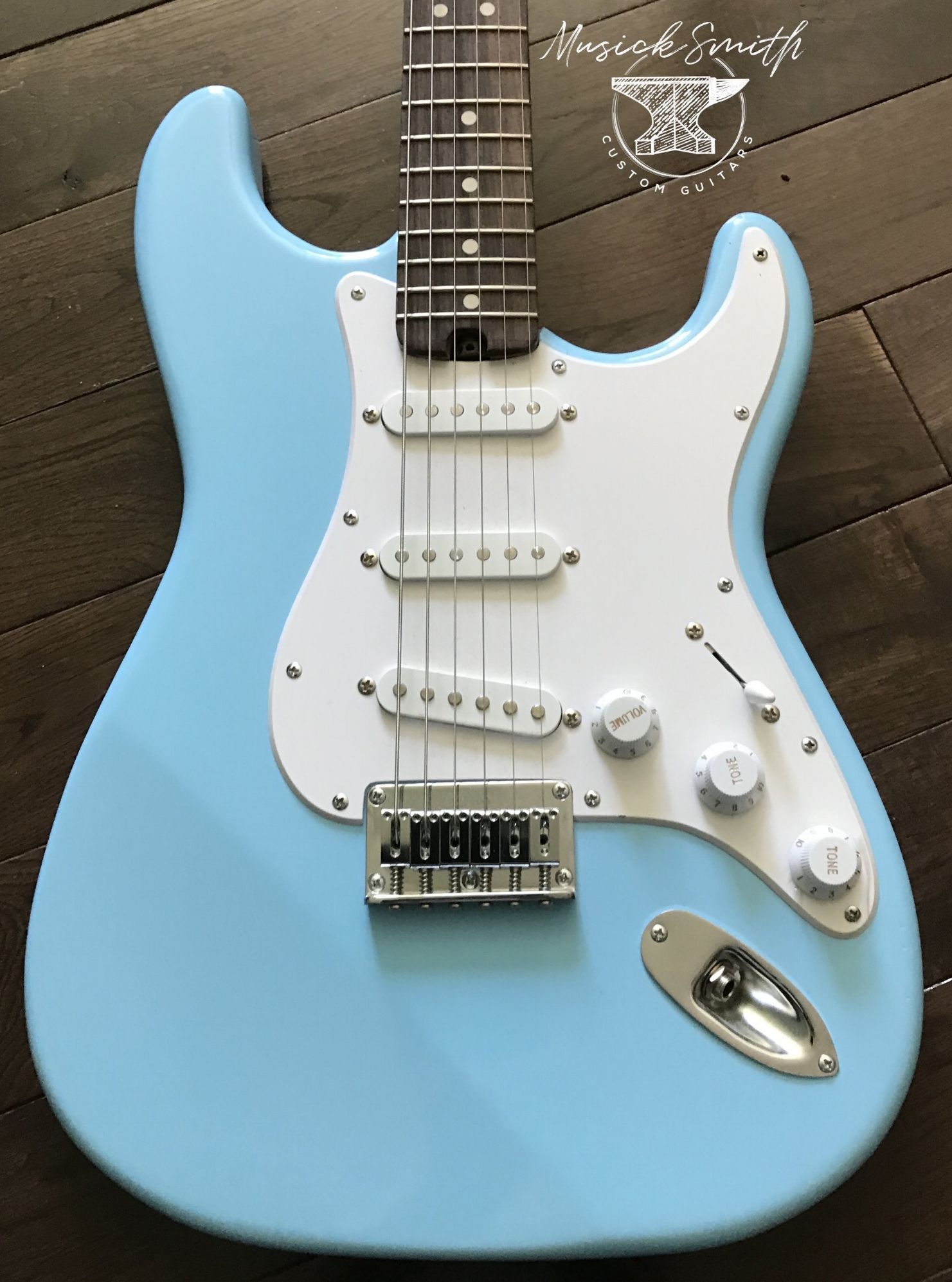

Our take on the classic S-Style guitar. We used a single piece of incredibly light and resonant spanish cedar for both the body and neck and paired it with a rosewood fretboard. Hardware, electronics, clay dots, and nitro finish all help it retain the old school vintage flare.
BODY STYLE: Classic S-Style
BODY WOOD: Spanish Cedar
BODY FINISH: Daphne Blue (aka Shop Towel Blue) Nitro
NECK WOOD: Spanish Cedar
FINGERBOARD WOOD: Rosewood
SCALE LENGTH: 25.5"
RADIUS: 12"
Inlay: clay dots
NUT WIDTH: 1 11/16"
FRETS: StewMac #0148
NECK FINISH: Clear Nitro Lacquer
TUNERS: Gotoh tuners
BRIDGE: Gotoh Classic style hardtail
PICKUP: 3 single coils
CONTROLS: One Volume, Two Tone, 5 way toggle
HARDWARE COLOR: Chrome
STRINGS: Mapes Blues
Another take on the classic S Style guitar. This time we used Mahogany on both the body and neck paired it with a rosewood fretboard. Vintage style hardware is finished in black. Nitro laquer on both the body and neck.
BODY STYLE: Classic S-Style
BODY WOOD: Mahogany
BODY FINISH: Transparent Cherry Nitro Laquer
NECK WOOD: Mahogany
FINGERBOARD WOOD: Rosewood
SCALE LENGTH: 25.5"
RADIUS: 12"
Inlay: Clay Dots
NUT WIDTH: 1 11/16"
FRETS: StewMac #0148
NECK FINISH: Clear Nitro Lacquer
TUNERS: Gotoh tuners
BRIDGE: Gotoh Classic style
PICKUP: 3 single coils
CONTROLS: One Volume, Two Tone, 5 way toggle
HARDWARE COLOR: Black
STRINGS: Mapes Blues
This guitar was built for Indianapolis based guitarist Joel Hargraves. Joel can shred, and wanted a guitar that can keep up with him. We sourced much of the wood locally including the maple top, maple fretboard, and walnut binding. Finished with a beautiful nitro blue burst with scraped 'binding' and an ultra fast thin tru-oil finish on the neck. We threw in some quality gold hardware from floyd rose, a unique 6 way switch, and a couple of high output seymour duncan humbuckers. This guitar is a unique take on a modern classic style that Joel is happy to take along to his gigs.
BODY STYLE: Modern Doublecut with carved top, rear comfort contour, and "complete access" lower cutaway.
BODY WOOD: Mahogany & Curly Maple
BODY FINISH: Blueburst Nitro Laquer
NECK WOOD: Mahogany
FINGERBOARD WOOD: Maple
FINGERBOARD BINDING: Walnut
SCALE LENGTH: 25"
RADIUS: 12"
Inlay: Walnut Dots
NUT WIDTH: 1 11/16"
FRETS: StewMac #0152
NECK FINISH: Tru-oil
TUNERS: Gotoh
BRIDGE: Floyd Rose
PICKUP: Two Dirty Fingers Humbuckers
CONTROLS: Two Volume, Two Tone, Free-way 6 way toggle
HARDWARE COLOR: Gold
STRINGS: Mapes Blues
Our take on the classic P-Style Bass. Mahogany body and maple/rosewood neck. Hardware, electronics, clay dots, and nitro finish all help it retain the old school vintage flare.
BODY STYLE: P-Style Bass
BODY WOOD: Mahogany
BODY FINISH: Deep Purple Nitro Laquer
NECK WOOD: Maple
FINGERBOARD WOOD: Rosewood
SCALE LENGTH: 34"
RADIUS: 12"
Inlay: Pearl Dots
NUT WIDTH:
FRETS:
NECK FINISH: Tru-oil
TUNERS:
BRIDGE:
PICKUP:
CONTROLS:
HARDWARE COLOR: Chrome
STRINGS: Mapes Blues
Our take on a stripped down LP-Style. Mahogany body with curly maple top and maple/rosewood neck.
BODY STYLE: Classic LP-Style with carved top
BODY WOOD: Mahogany
BODY FINISH: Blue Nitro Laquer
NECK WOOD: Maple
FINGERBOARD WOOD: Rosewood
SCALE LENGTH: 24 3/4"
RADIUS: 12"
Inlay: Pearl Dots
NUT WIDTH: 1 11/16"
FRETS: 22 Stew Mac #0148 frets
NECK FINISH: Nitro Laquer
TUNERS: Gotoh
BRIDGE: Gotoh
PICKUP: Two Humbuckers
CONTROLS: Two Volume, Two Tone, 3 way switch
HARDWARE COLOR: Chrome
STRINGS: Mapes Blues
THIS GUITAR IS UNDER CONTRUCTION. FOR UPDATES ON OUR PROGRESS CHECK HERE: fb.me/MusickSmithGuitars
BODY STYLE: Classic LP-Style with carved top
BODY WOOD: Mahogany & Curly Maple
BODY BINDING: White
BODY FINISH: Green Nitro Laquer
NECK WOOD: 5 piece Mahogany/Maple/Wenge/Maple/Mahogany
FINGERBOARD WOOD: Rosewood
FINGERBOARD BINDING: White
HEADSTOCK: MusickSmith 3x3 with Wenge top strap, Wenge back strap, hand carved volute, signature and logo inlays
SCALE LENGTH: 24 3/4"
RADIUS: 12"
Inlay: pearl blocks
NUT WIDTH: 1 11/16"
FRETS: StewMac #0148
NECK FINISH: Tru-oil
TUNERS: Gotoh
BRIDGE: tune-a-omatic
PICKUP: Two Seymour Duncan Humbuckers
CONTROLS: Two Volume, Two Tone, 3 way toggle
HARDWARE COLOR: chrome
STRINGS: Mapes Blues
THIS GUITAR IS UNDER CONTRUCTION. FOR UPDATES ON OUR PROGRESS CHECK HERE: fb.me/MusickSmithGuitars
This is our DoubleCut design. We spent countless hours refining the design of this instrument to meet the needs of the modern player. This is a guitar that can pull off everything from Charlie Parker to Eddie Van Halen Licks. We are very much looking forward to sharing these guitars with other players.
BODY STYLE: MusickSmith DoubleCut with carved top
BODY WOOD: Mahogany & Claro Walnut
BODY BINDING: White
BODY FINISH: Clear Nitro Laquer
NECK WOOD: 5 piece Mahogany/Maple/Wenge/Maple/Mahogany
FINGERBOARD WOOD: Rosewood
FINGERBOARD BINDING: White
HEADSTOCK: MusickSmith 3x3 with Wenge top strap, Wenge back strap, hand carved volute, anvil logo inlay
SCALE LENGTH: 25.5"
RADIUS: 12"
Inlay: pearl dots
NUT WIDTH: 1 11/16"
FRETS: StewMac #0148
NECK FINISH: Tru-oil
TUNERS: Schertler
BRIDGE: Wilkinson Modern tremolo
PICKUP: Two Seymour Duncan Humbuckers
CONTROLS: Two Volume, One Tone, 3 way toggle
HARDWARE COLOR: chrome
STRINGS: Mapes Blues
THIS GUITAR IS UNDER CONTRUCTION. FOR UPDATES ON OUR PROGRESS CHECK HERE: fb.me/MusickSmithGuitars
This is our Singlecut design. We started with a blank piece of paper, some drafting tools, and a mountain of influences and ideas. After months of prototyping in the wood shop we've come out with a guitar that combines elements from several classic designs along with some of our own ideas. We are very much looking forward to sharing these guitars with other players.
BODY STYLE: MusickSmith SingleCut with Carved Top
BODY WOOD: Mahogany & Claro Walnut
BODY BINDING: White
BODY FINISH: Clear Nitro Laquer
NECK WOOD: 5 piece Mahogany/Maple/Wenge/Maple/Mahogany
FINGERBOARD WOOD: Rosewood
FINGERBOARD BINDING: White
HEADSTOCK: MusickSmith 3x3 with Wenge top strap, Wenge back strap, hand carved volute, anvil logo inlay
SCALE LENGTH: 25.5"
RADIUS: 12"
Inlay: pearl dots
NUT WIDTH: 1 11/16"
FRETS: StewMac #0148
NECK FINISH: Tru-oil
TUNERS: Schertler
BRIDGE: Schaller Signum
PICKUP: Two Seymour Duncan Humbuckers
CONTROLS: Two Volume, One Tone, 3 way toggle
HARDWARE COLOR: chrome
STRINGS: Mapes Blues
